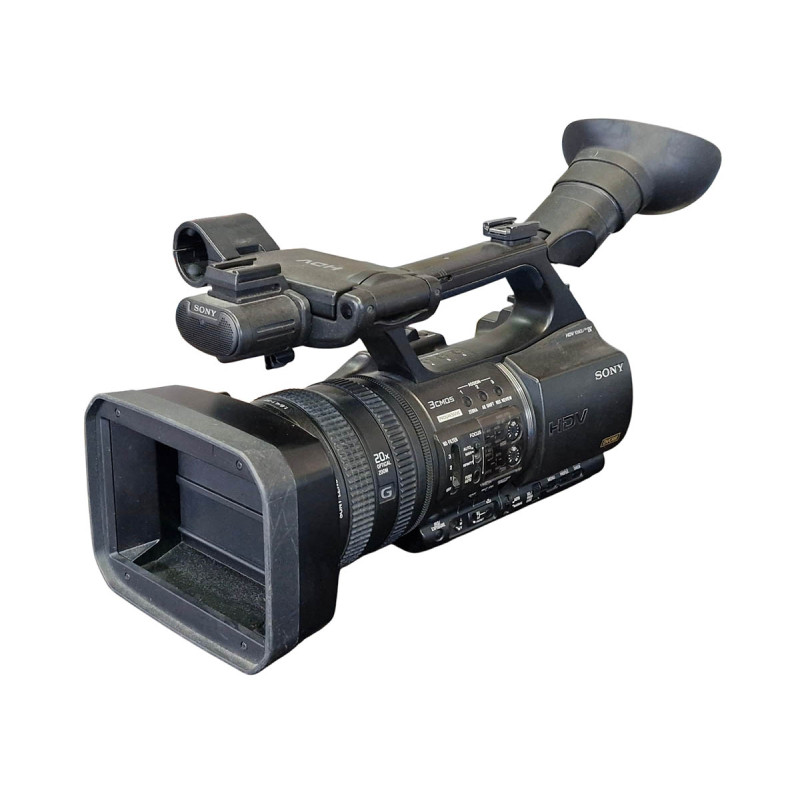

Sony HVR-Z5E (HDV+)

Sony HVR-Z5N - technické údaje:

• Lens
  Sony G Lens, 20x (optical), f = 4.1 to 82mm, f = 29.5 to 590 mm at 16:9 mode, f = 36.1 to 722 mm at 4:3 mode, filter diameter: 72mm
• Built-in filter
  Clear, 1/4, 1/16, 1/64
• Imaging system
  1/3 inch-type, progressive 3 ClearVid CMOS Sensor system with technology of Exmor
• Picture elements
  Approx. 1,037,000 pixels (effective), approx. 1,120,000 pixels (total)
• Focus
  Auto, manual (focus ring/one push auto/infinity/AF assist/focus macro)
• White balance
  Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx. 500K/step), manual WB Temp (selectable 2300K to 15000K, 100K/step)
• Manual shutter speed
  Auto 1/60 - 1/2000
• Manual shutter speed
  Manual 60i/30p: 1/4 - 1/10000, 24p: 1/3 - 1/10000
• Gain
  -6, -3, 0, 3, 6, 9, 12, 15, 18, 21 dB

• LCD view finder
  0.45 inch-type (Viewable area measured diagonally), approx. 1,226,880 dots (852 x 3[RGB] x 480), 16:9 aspect ratio
• LCD monitor
  3.2 inch-type (Viewable area measured diagonally), XtraFine LCD, approx. 921,600 dots, hybrid type, 16:9 aspect ratio

• Minimum
  Illumination 1.5 lux (auto gain, auto iris, 1/30 shutter)

• Mass
  Approx. 2.2 kg (5 lb 1 oz) (w/o tape, battery)
• Dimension (W x H x D)
  Approx.169 x 188 x 451mm (6 3/4 x 7 1/2 x 17 7/8inch) (with lens hood, microphone and large eye cup)
• Power requirements
  DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)
• Power consumption
  HDV Approx. 7.1 W (with ECM-XM1 / LCD viewfinder ON)
• Power consumption
  DVCAM/DV Approx. 6.8 W (with ECM-XM1 / LCD viewfinder ON)
• Battery operating time
  HDV 395min (NP-970)
• Battery operating time
  DVCAM/DV 415min (NP-970)
• Operating temperature
  0 to 40 °C (32 to 104 °F)
• Storage temperature
  -20 to 60 °C (-4 to 140 °F)

• • Recording format
    HDV1080/60i/30p/24p, DVCAM, DV SP 480/60i (NTSC)
  • Play out/Down conversion format
    HDV1080/60i/30p/24p, DVCAM, DV SP 480/60i (NTSC)
  • Playback/Recording time
    HDV/DV SP: Max. 63 min with PHDVM-63DM cassette
  • Playback/Recording time
    DVCAM: Max. 41 min with PHDVM-63DM cassette
  • Audio/Video output
• • 10-pin connector A/V OUT jack (component, composite and unbalanced audio x2ch with the supplied cables)
  • HDV/DV input/output
    i.LINK interface (IEEE 1394, 4-pin)
  • XLR audio input
    XLR 3-pin female x 2ch
  • Headphone
    Stereo mini jack (ø3.5 mm)
  • LANC
    Stereo mini-mini jack (ø2.5 mm)
  • Digital video output
    HDMI connector
