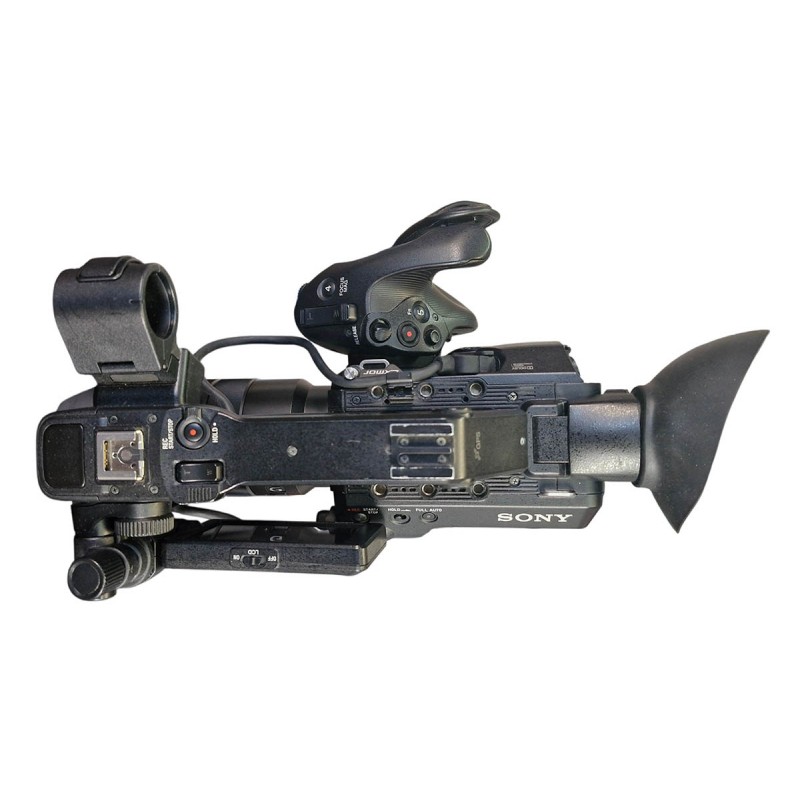

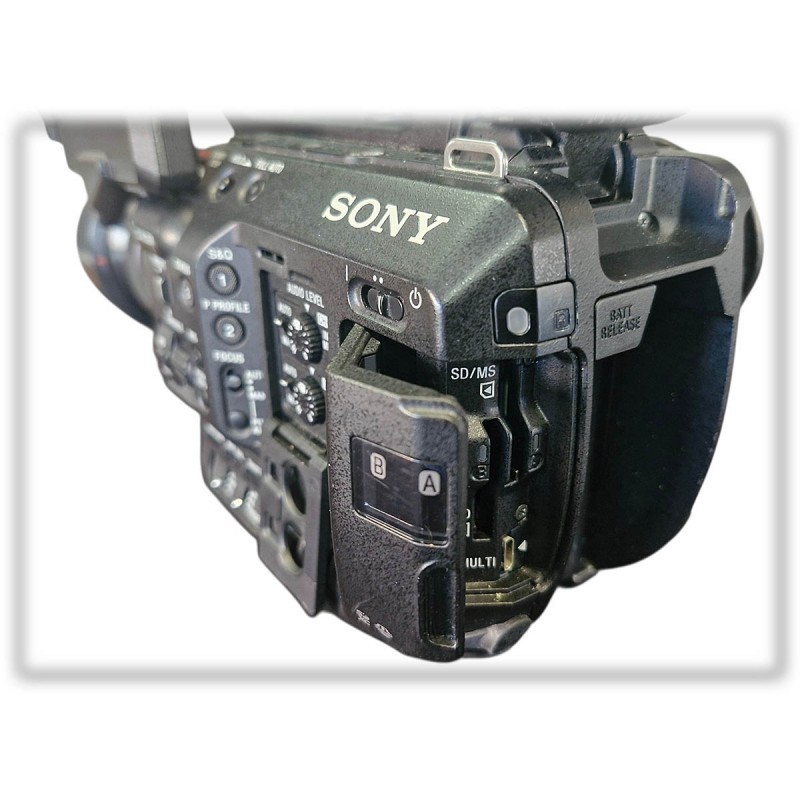

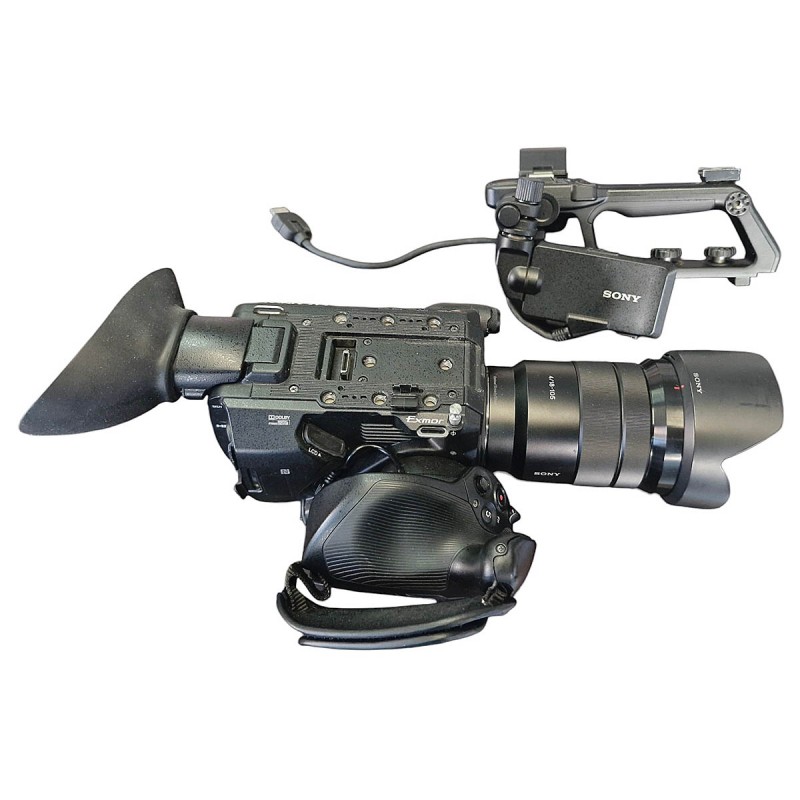

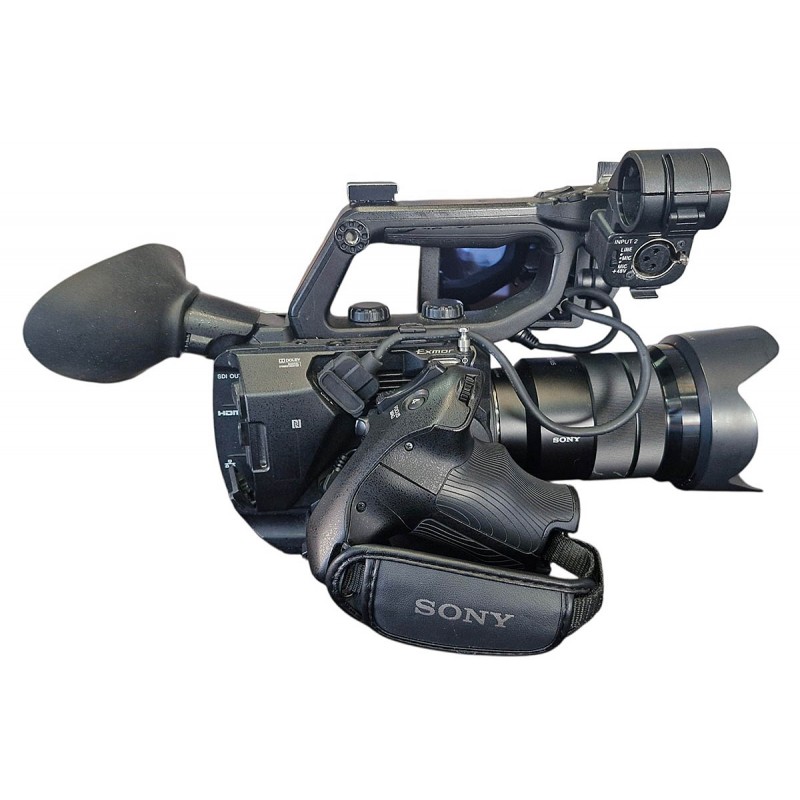

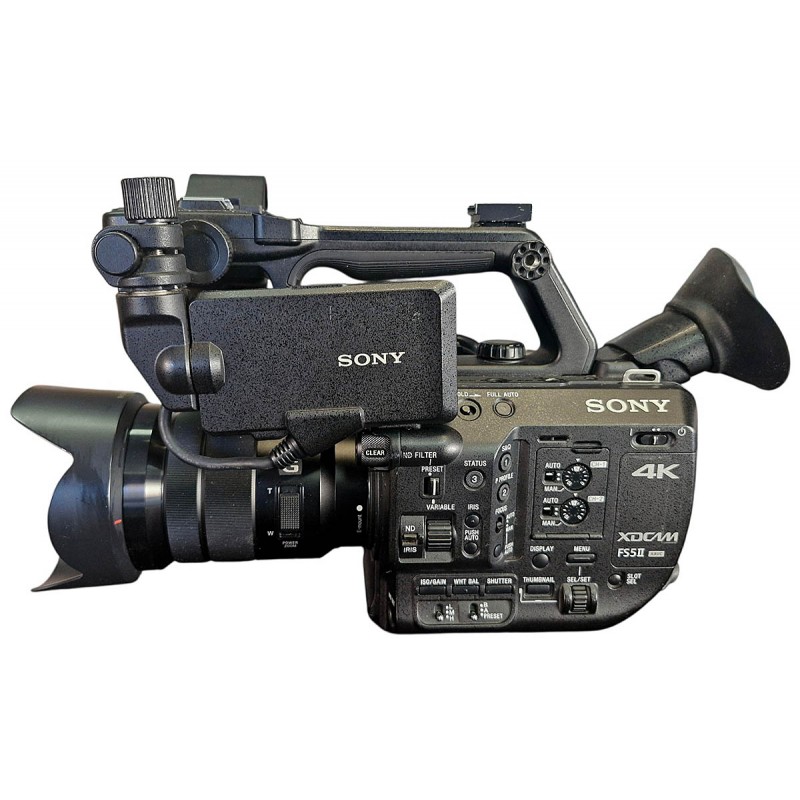

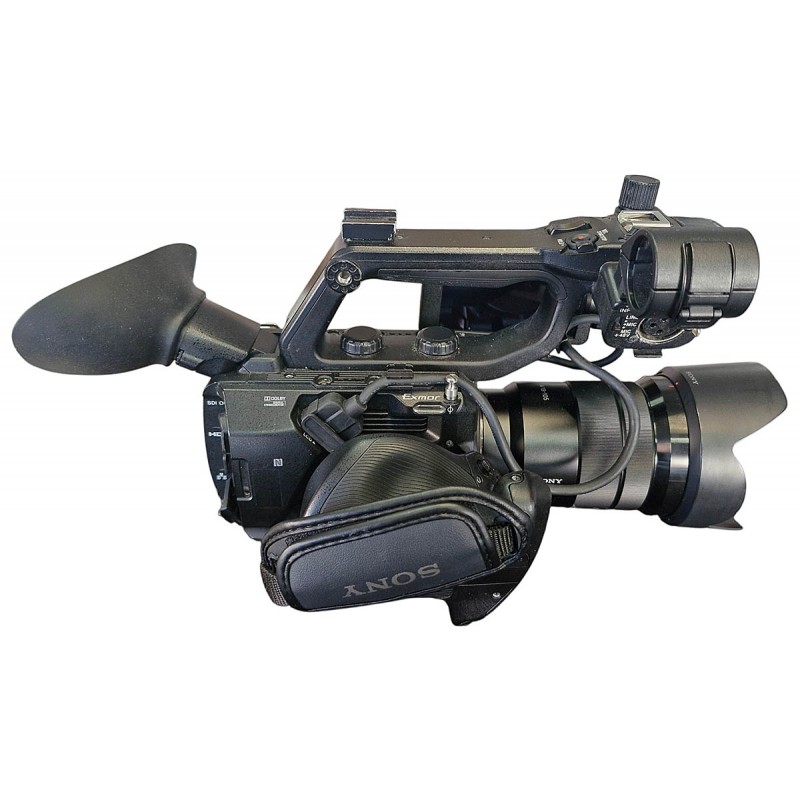

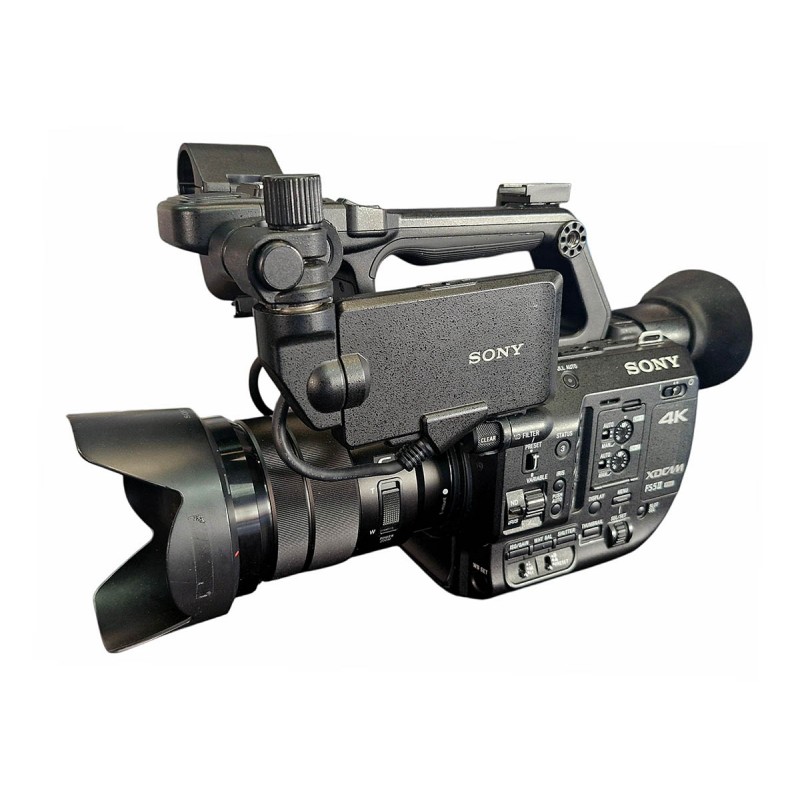

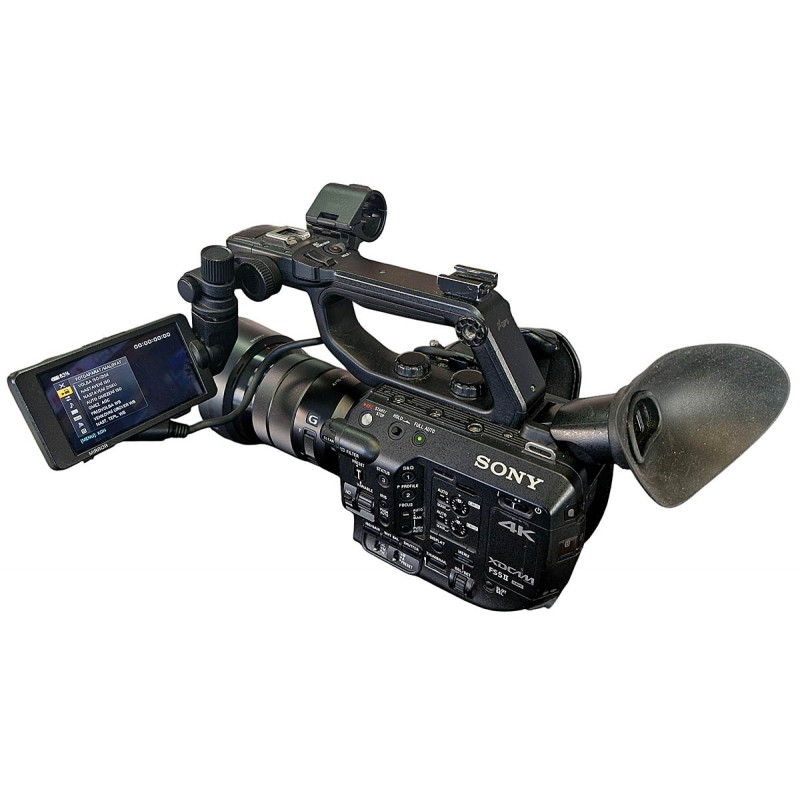

Sony PXW-FS5 M II (4K)

Sony PXW-FS5 Mark II - technická data:

• Imaging Device (Type) - "Exmor" Super35 CMOS Sensor
• Effective Picture Elements - 3840 (H) x 2160 (V)(16:9)
  4096 (H) x 2160 (V)(17:9, at RAW output)
• Built-in Optical Filters - ND filters - OFF: CLEAR
  1: 1/4ND - 2: 1/16ND - 3: 1/64ND
  Linear variable ND (1/4ND to 1/128ND)
• ISO Sensitivity - S-Log2/Log3 Gamma ISO2000
• Minimum Illumination
  0.16Lux [60i] (IRIS F1.4, GAIN Auto, Shutter Speed 1/24)
  0.18Lux [50i] (IRIS F1.4, GAIN Auto, Shutter Speed 1/25)
• Horizontal Rezolution - 1000 TV lines or more (1920 x 1080i mode)
• Shutter Speed - 1/8 to 1/10000 sec. (60i) - 1/6 to 1/10000 sec. (50i/24p)
• Slow and Quick Motion Function - [30p]:2160p: Frame rate selectable 1.2.4.8.15.30 fps
  [25p]:2160p: Frame rate selectable - 1.2.3.6.12.25 fps
  [60i]:1080p: Frame rate selectable - 1,2,4,8,15,30,60,120 fps
  [50i]: 1080p: Frame rate selectable - 1,2,3,6,12,25,50,100 fps
• Super Slow Motion Function - [60i] Frame rate selectable - 120, 240, 480, 960 fps
  [50i] Frame rate selectable - 100, 200, 400, 800 fps
• White Balance - Preset (3200K), Memory A, Memory B/ATW
• Gain - 0,3,6,9,12,15,18,24,27,30dB,AGC

• Mass - Approx. 830g (Body only), Approx. 1lb 13.2 oz (Body only)
  Approx. 2.2kg (with SELP18105G and lens hood[optional], battery pack BP-U35, large eyecup, lcd panel, handle, grip w/o gripbelt)
  Approx. 4lb 14.5 oz (with SELP18105G and lens hood[optional], battery pack BP-U35, large eyecup, lcd panel, handle, grip w/o gripbelt)
• Dimensions (W x H x D) *1
  Approx. 111.3 x 128.7 x 172.4 mm (Body only including the projecting parts)
  Approx. 185.2 x 218.3 x 369.5 mm (with SELP18105G and lens hood[optional], large eyecup, lcd panel, handle, grip w/o grip belt and including the projecting parts)
  Approx. 4 1/2 x 5 1/8 x 6 7/8 inches (Body only including the projecting parts)
  Approx. 7 3/8 x 8 5/8 x 14 5/8 inches (with SELP18105G and lens hood[optional], large eyecup, lcd panel, handle, grip w/o grip belt and including the projecting parts)
• Power Requirements - Power Requirements DC 14.4V (battery pack) - DC 12.0V (AC adaptor)
  Please use genuine Sony batteries to ensure correct and safe operation *2
• Power Consumption - Approx. 11.8W [60i], Approx. 11.5W [50i]
  (while recording with LCD Off, EVF On when the external device connector is not used.)
  Approx. 12.6W [60i], Approx. 12.3W [50i]
  (while recording with LCD On, EVF On when the external device connector is used.)
• Operating Temperature - 0°C to 40°C, 32°F to 104°F
• Storage Temperature - -20°C to +60°C, -4°F to +140°F
• Battery Operating Time
  With battery pack BP-U90: approx. 6 hours, 40 minutes [60i]
  Approx. 6 hours, 45 minutes [50i]
  (While recording with LCD On, EVF Off when the external device connector is not used.)
  With battery pack BP-U60: approx. 4 hours, 15 minutes [60i]
  Approx. 4 hours, 20 minutes [50i]
  (While recording with LCD On, EVF Off when the external device connector is not used.)
  With battery pack BP-U35: approx. 2 hours, 40 minutes [60i]
  Approx. 2 hours, 40 minutes [50i]
  (While recording with LCD On, EVF Off when the external device connector is not used.)
• With battery pack BP-U30: approx. 2 hours, 10 minutes [60i]
  Approx. 2 hours, 10 minute [50i]
  (While recording with LCD On, EVF Off when the external device connector is not used.)
• Recording Format (Video) - XAVC QFHD : MPEG-4 AVC/H.264, 4:2:0 Long profile
  XAVC HD : MPEG-4 AVC/H.264 - 4:2:2 Long profile
  AVCHD : MPEG-4 AVC/H.264 - AVCHD 2.0 format compatible
• Recording Format (Audio) - XAVC : Linear PCM 2ch, 24bit, 48kHz
  AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
• Recording Frame Rate - XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p, 100Mbps/60Mbps
  XAVC HD (1920 x 1080) @59.94p, 50p, 50Mbps/35Mbps
  XAVC HD (1920 x 1080)@59.94i, 50i, - 50Mbps/35Mbps/25Mbps
  XAVC HD (1920 x 1080)@29.97p, 25p, 23.98p, 50Mbps/35Mbps
  XAVC HD (1280 x 720)@59.94p, 50p, 50Mbps
  AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28Mbps)
  AVCHD (1920 x 1080) - @59.94i/50i/29.97p/25p/23.98p,
  FX mode (24Mbps) - FH mode (17Mbps) - AVCHD (1280 x 720)@59.94p, 50p,
  FX mode (24Mbps) - FH mode (17Mbps) - HQ mode (9Mbps)
