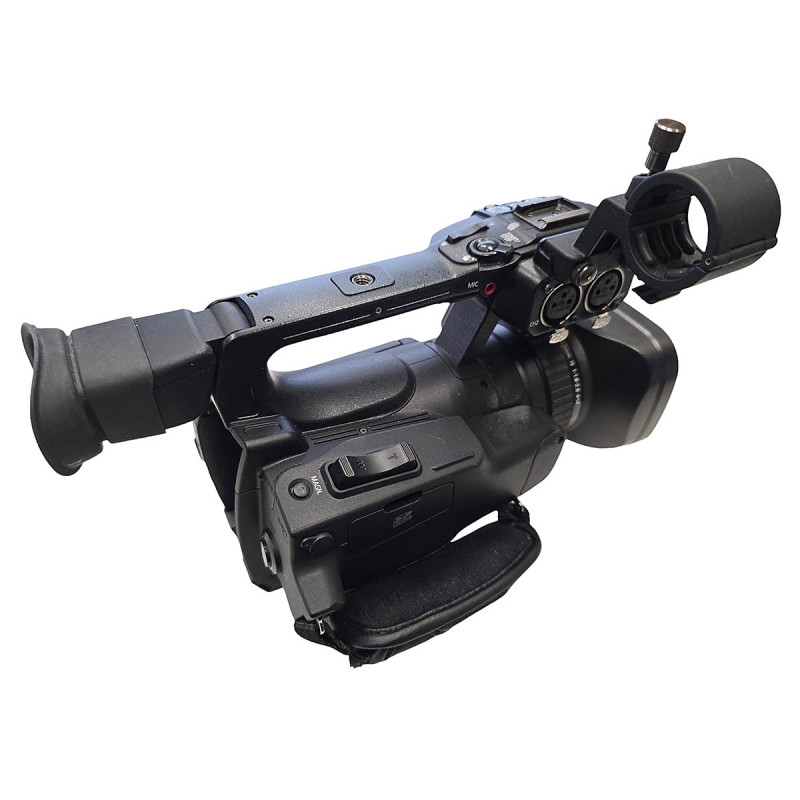

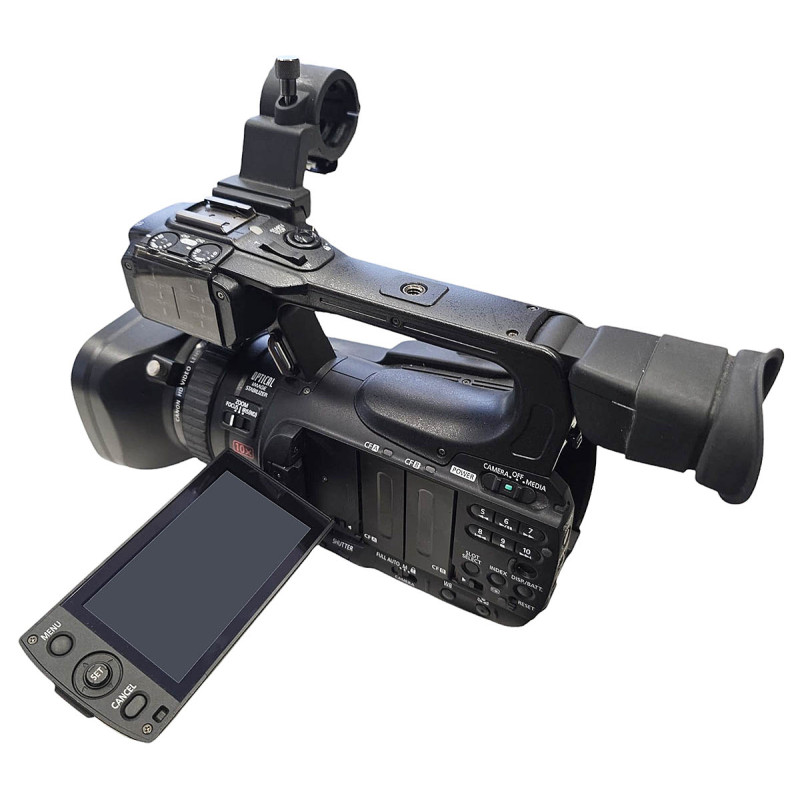

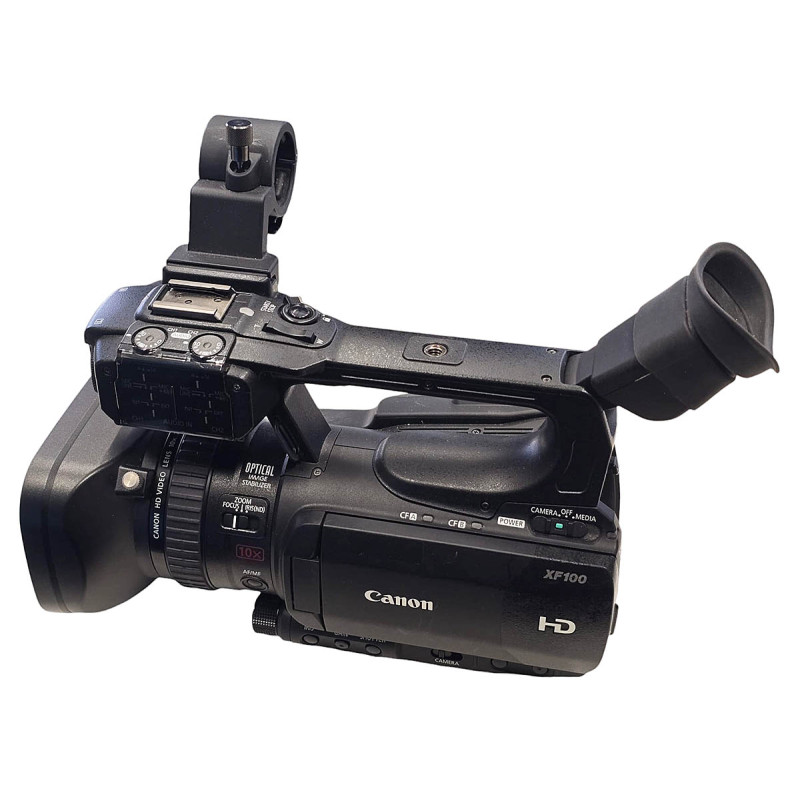

Canon XF100 (Full-HD)

Technické parametry - Canon XF z Webu Canon-CAMERA-MUSEUM:

Standard Definition or High DefinitionHigh DefinitionPower Supply (rated)7.4V DC (battery pack)Video Recording systemCompression: MPEG-2 Long GOP
Color Space: 4:2:2 (at 50Mbps recording)
File Format: MXF
Recording Modes:
50Mbps (CBR) 4:2:2, 1920×1080, (60i/30p/24p),
1280×720 (60p/30p/24p);
35Mbps (VBR) 4:2:0, 1920×1080 (60i/30p/24p),
1280×720 (60p/30p/24p);
25Mbps (CBR) 4:2:0, 1440×1080 (60i/30p/24p)Audio Recording system2-Channel, PCM digital recording, 16-Bit; 48kHzImage Sensor1/3-inch CMOSTotal PixelsApprox. 2.37 megapixels (2044 x 1160 pixels)Effective PixelsApprox. 2.07 megapixels (1920 x 1080 pixels)Maximum recording64GB Compact Flash (CF) card
Greater capacity is possible when two cards are used.
25Mbps: 310 minutes
35Mbps: 225 minutes
50Mbps: 160 minutesLensCanon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4 – 304mm),
f/1.8-2.8Focusing SystemRing control or automatic (Instant AF, Medium AF, TV AF, Face Detection AF, Face Only AF)Max Shutter Speed1/2000Minimum Focusing Distance20mm (wide macro), 60cm (entire zoom range)Frame RateNTSC 60i, 30p, 24p / PAL 50i, 25pMinimum Illumination
Full Auto (Gain 24dB): NTSC 60i, 4.5lux; 30p, 2.3lux; 24p, 1.8lux / PAL 50i, 3.8lux; 25p, 1.9lux
Manual(Gain 33dB): NTSC 60i, 0.11lux; 30p, 0.11lux; 24p, 0.08lux / PAL 50i, 0.08lux; 25p, 0.08luxGenlock TerminalXF105:BNC (input only) Same terminal as Time CodeHD/SD-SDI TerminalXF105:BNC (output only), with embedded audio and time codeTimecode TerminalsXF105:BNC (input/output) Same terminal as GenlockImage StabilizationOptical lens shift system (angle and vector movement direction ); 3 modes: Dynamic, Standard, PoweredFilter Diameter58mmViewfinder0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of viewLCD Screen3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of viewMicrophoneStereo electrect condenser microphoneRecording MediaCF Card : 2 Slots, Movie files only
SD Card: Still images, Custom Picture Data, Clip Metadata, Custom SettingsUSB TerminalMini-B USB 2.0 Hi-SpeedVideo TerminalComponent: Output only
Composite: A/V terminal 3.5mm mini-jack, output onlyAudio TerminalXLR 3-pin jack (2), Switchable between MIC/LINE (input only), 3.5mm stereo mini-jackHDMI TerminalOutput only (Type A)AV Mini Terminal/Headphone Terminal3.5mm mini-jack (output only for video and audio)Remote Control Terminal2.5mm mini jackPerforming Temperature range0 – 40° C, 32 – 104° F , 85% relative humidityDimensionsApprox. 4.8 x 5.8 x 9.8 in. (121 x 148 x 250mm) (not including lens hood, mic holder unit, grip strap)Weight (not including battery pack, lens hood, mic holder unit, lens cap and memory card)XF105:2.4 lbs (1,070 g) (includes grip strap)
XF100:2.2 lbs (1,020 g) (includes grip strap)WeightXF105:2.8 lbs (1,290 g) (includes grip strap, lens hood, mic holder unit, BP-925, CF card (x1) and SD card)
XF100:2.7 lbs (1,240 g) (includes grip strap, lens hood, mic holder unit, BP-925, CF card (x1) and SD card)
